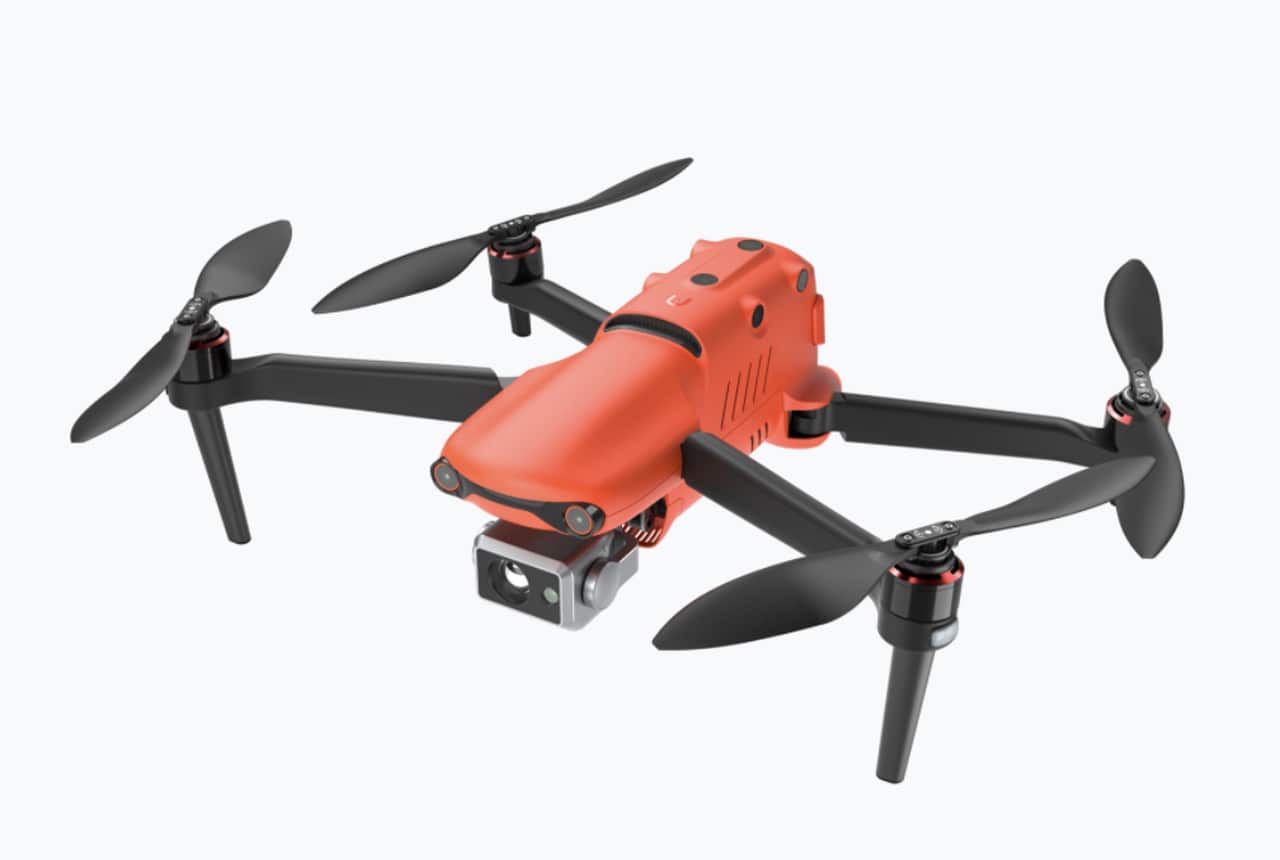

Autel EVO II v3

[embedyt] https://www.youtube.com/watch?v=vpSGu4KDMBA[/embedyt]





EVO II Dual R Radiometric (INCLUDES Rugged Bundle)

One aircraft, three camera options. Additional cameras can be purchased (when released) and are user swappable.

Rugged Bundle includes (1) additional flight battery and hard carry case.

Autel EVO II V3 Series Highlights

• • • HDR Video
    • Omnidirectional Obstacle Avoidance
    • 9 km/5.5 mi Video Transmission
    • Dynamic 48MP Stills

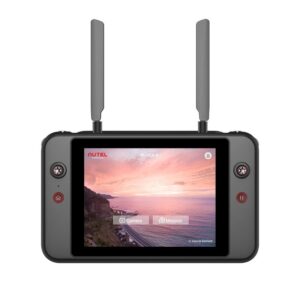

    • Built-In Display Remote Controller
    • 40-Minute Flight Time

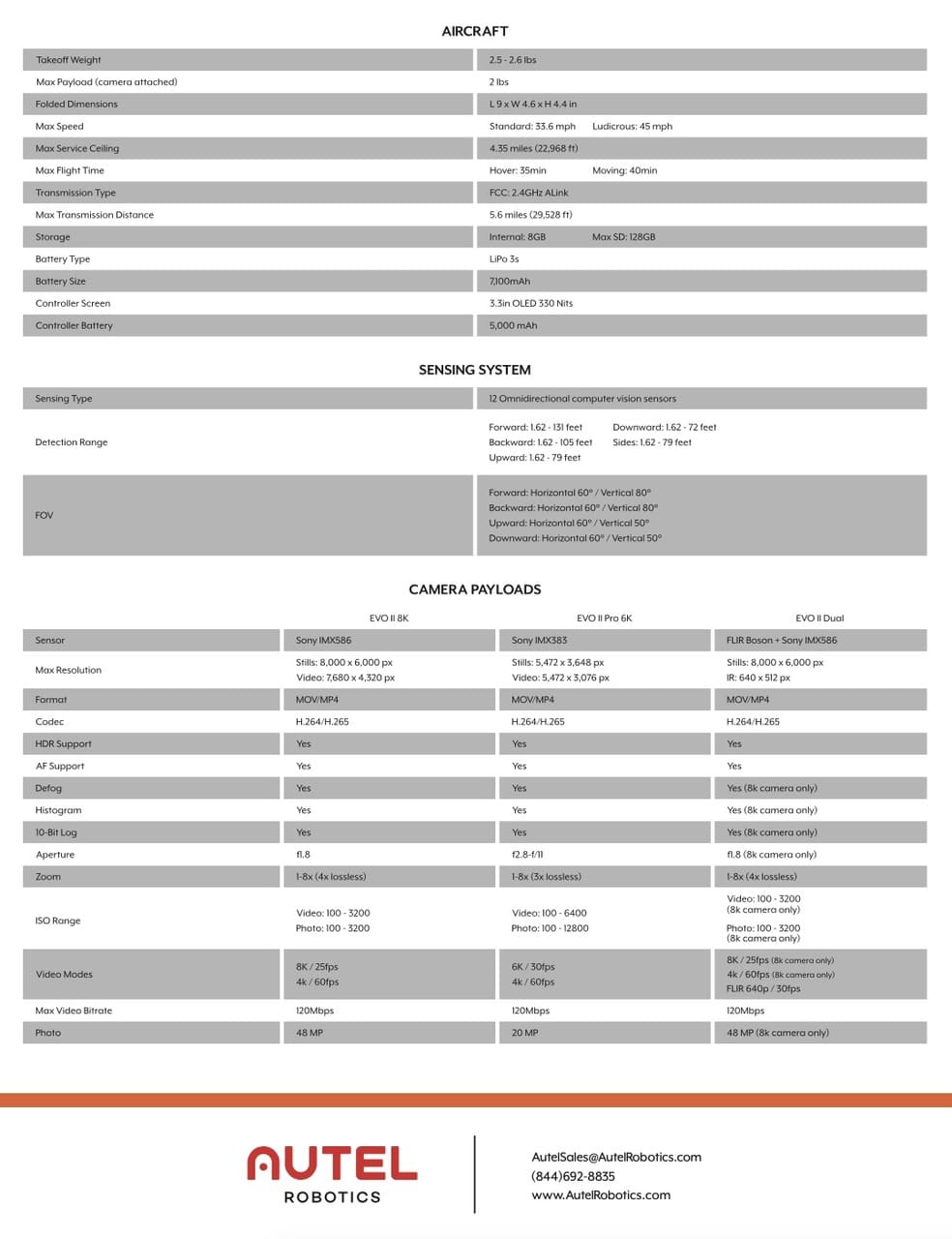

Aircraft Specifications:

Takeoff Weight: 1127g-1192g (2.48 lbs – 2.62 lbs)

Wheelbase: 397mm (15.62”)

Max Speed:

• • Standard: 15m/s (33.55 mph)
  • Ludicrous: 20m/s (44.73 mph)

Max Service Ceiling: 7000m/7km (4.34 mi)

Max Flight Time:

• • Hover: 35 minutes
  • Moving: 40 minutes

Transmission Type: FCC: 2.4GHz ALink

Max Transmission Distance: 9km (5.59 mi)

Storage:

• • Internal: 8GB
  • Max microSD: 128GB

Battery Type: LiPo 3s

Battery Size: 3.3in OLED 330 Nits

Controller Battery: 5000mAh

Obstacle Avoidance

Sensing Type: 12 Omnidirectional computer vision sensors

Detection Range:

• • Forward: .5m—40m
  • Downward: .5m—22m
  • Backward: .5m—32m
  • Sides: .5m—24m
  • Upward: .5m—24m

FOV:

• • Forward: Horizontal 60° / Vertical 80°
  • Backward: Horizontal 60° / Vertical 80°
  • Upward: Horizontal 60° / Vertical 50°
  • Downward: Horizontal 60° / Vertical 50°

EVO II DUAL R CAMERA SPECIFICATIONS:

Sensor: FLIR Boson Radiometric + 1/2.3″ (IMX586)

Max Resolution:

• • • Stills: 8000×6000
    • Infrared: 640×512

Format: MOV/MP4

Codec: H.264/H.265

HDR Support: Yes

AF Support: Yes

Defog: N/A

Histogram: Visible Only

10-Bit Log: Visible Only

Aperture: Visible f/1.8

Zoom: 1-8x (4x lossless)

ISO Range: Visual Light: 100—3200
