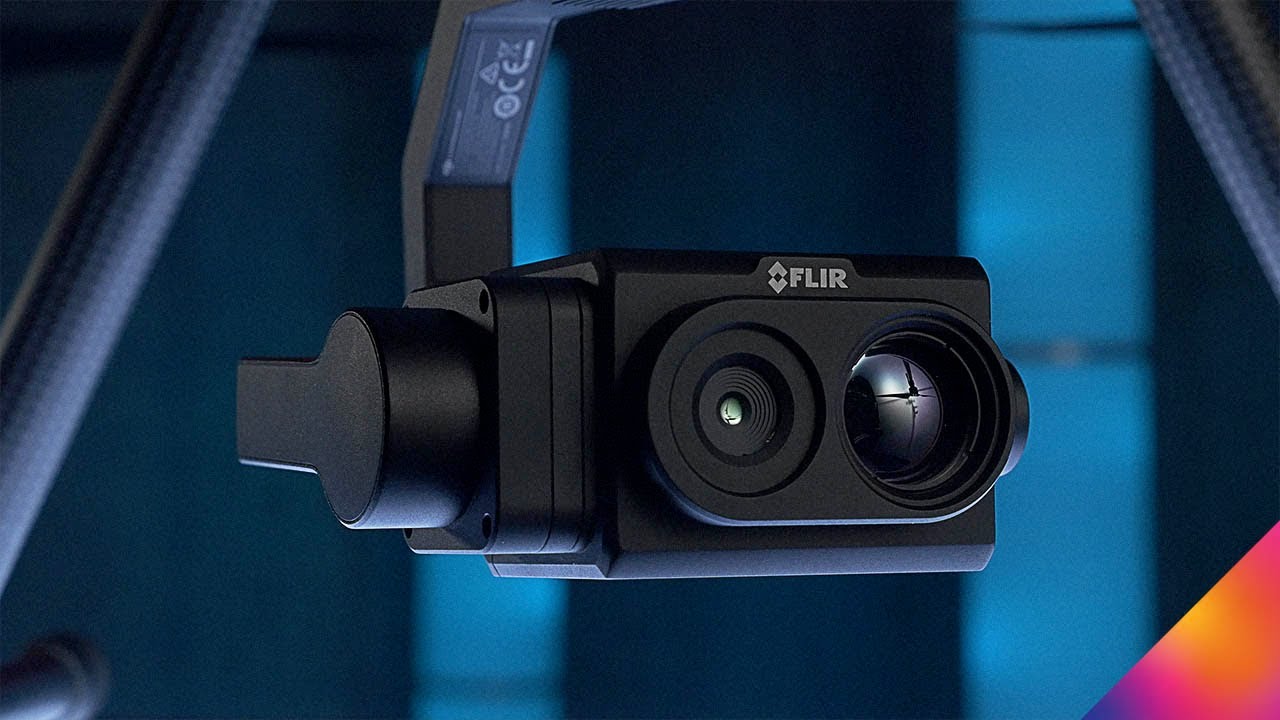

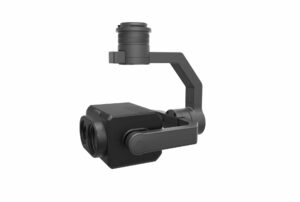

FLIR TZ20 Dual Thermal Camera

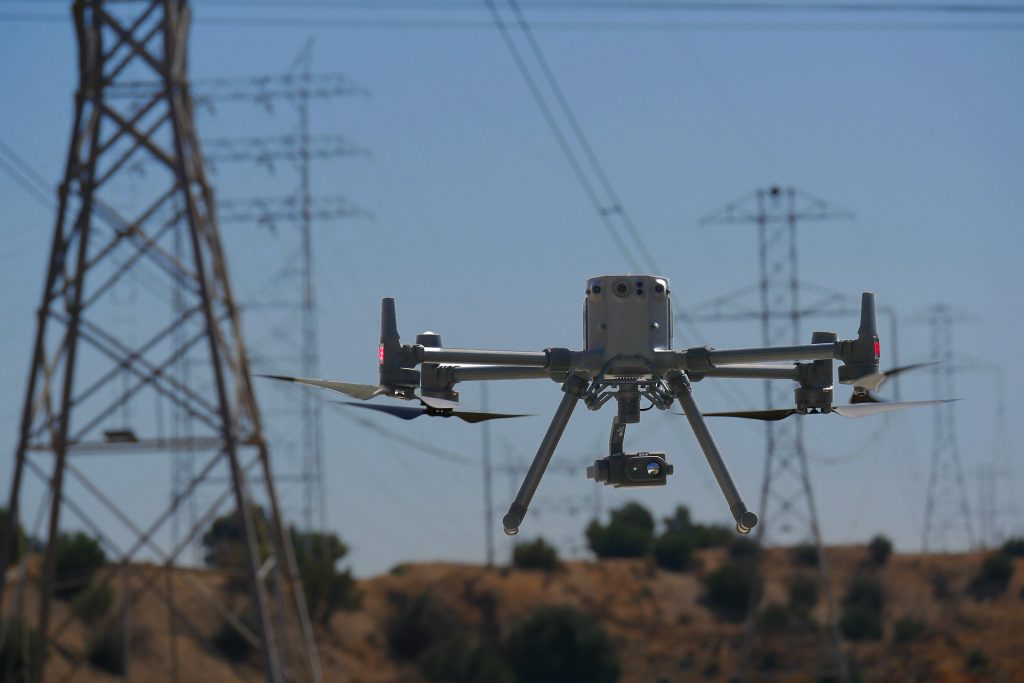

The dual-Boson® FLIR Vue TZ20 plug-and-play payload is designed to improve mission success and is fully integrated with the DJI V2 M200-series and M300 airframes. This system provides a wide 95-degree field of view for maximum situational awareness, and a narrow 18-degree field of view to put more pixels on target when needed. With up to 20x zoom capabilities, the FLIR Vue TZ20 allows drone pilots from the public safety and industrial inspection sectors to gain field of view flexibility for improved image detail and magnification to assess situations and make critical decisions.

20X THERMAL ZOOM TO SUPPORT SITUATIONAL AWARENESS

Improve situational awareness with two FOVs and thermal zoom capabilities enables faster time to market.

• Maintain wide field of view to cover large areas in a single flight
• Quickly hone in on target of interest with 2x, 5x, 10x and 20x zoom
• Get more pixels on target instantaneously when needed

HIGH RESOLUTION DUAL FLIR BOSON CAMERAS

Advanced FLIR resolution and image processing

• See crisp detail with two 640 × 512 non-radiometric Boson cameras
• Record clear imagery with the full-featured VGA thermal camera module
• Rely on the quality of FLIR factory-calibrated subassembly

READY TO FLY OUT OF THE BOX

Plug-and-play with industry leading DJI airframes

• Quickly connect with Skyport V2.0 gimbal
• Compatible with DJI V2 M200-series and M300 airframes
• Record in-flight on two included Micro SD cards

SPECIFICATIONS

Dimensions Payload: 75 × 70 × 55 mm
With gimbal: 128 × 154× 141 mm

Weight 640 g
Mechanical Interface Skyport 2.0
Electrical Interface Skyport 2.0, 13.6 V/4 A
Array format 2 Boson 640 × 512
Pixel Pitch 12 μm LWIR
IR Camera Optics Wide FOV: 95° HFOV, 4.9 mm EFL
Narrow FOV: 18° HFOV, 24 mm EFL

Thermal sensitivity 50 mK @ F/1.0
Zoom 5x optical (WFOV/NFOV), 4x digital
Effective zoom: 1x (95°), 2x, 5x, 10x, 20x (4.5°)

Recording Still: TIFF

Video: MPEG (same as streaming)
Streaming 640 × 512 @ 30 Hz
Storage 2 micro SD cards
Ground control DJI Pilot App
Gimbal 3-axis
Pitch: 30° to -120°
Yaw: ±320°

Airframe compatibility DJI V2 Matrice 200-series and Matrice 300
Operational and storage temperature -20°C to 45°C (-4°F to 113°F)
Tested EMI performance -20°C to 60°C (-4°F to 140°F)
Environmental sealing IP44
