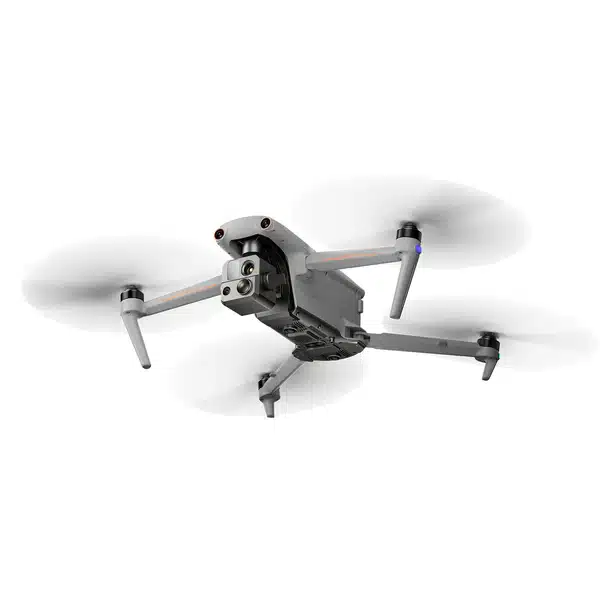

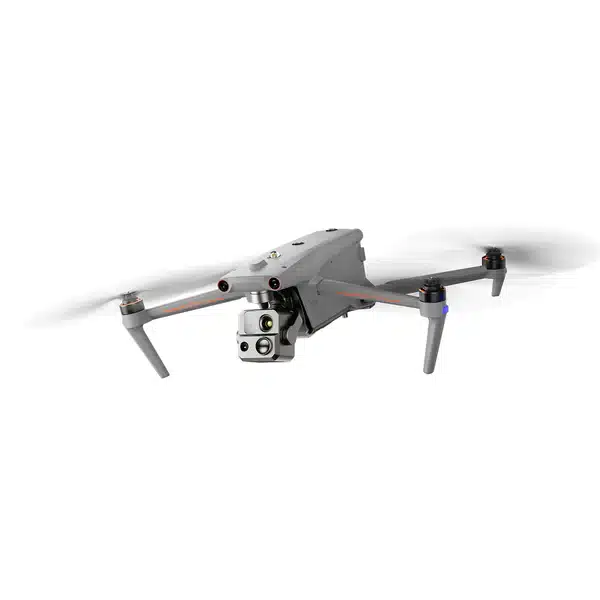

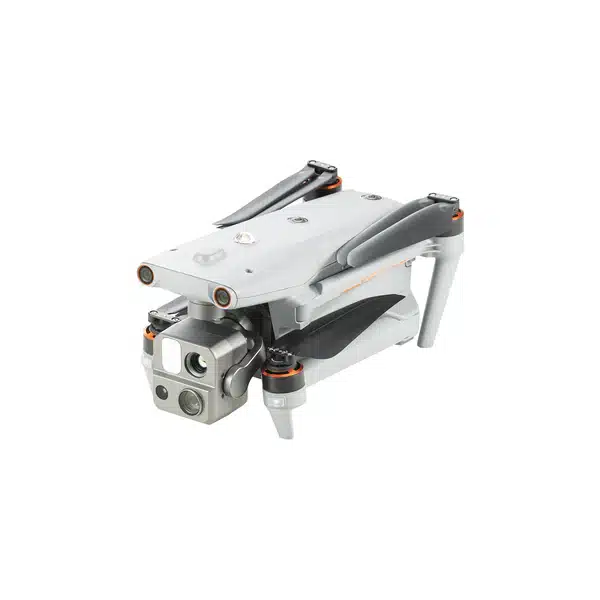

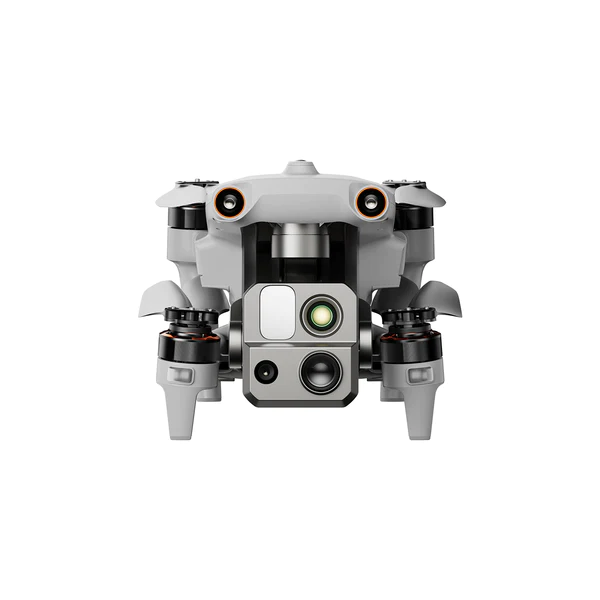

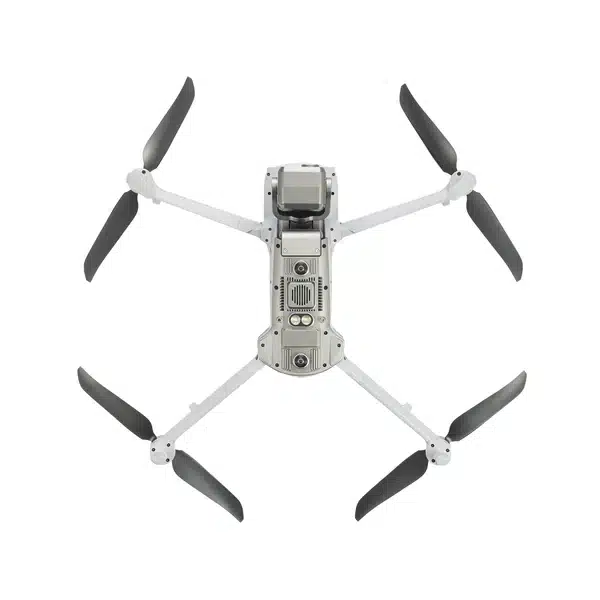

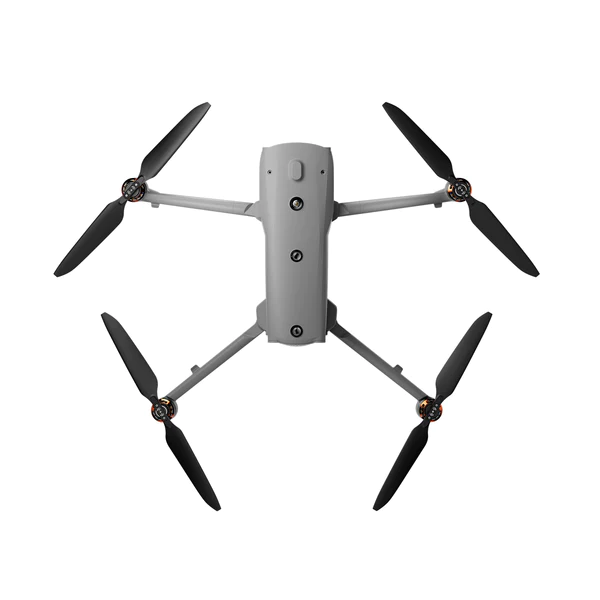

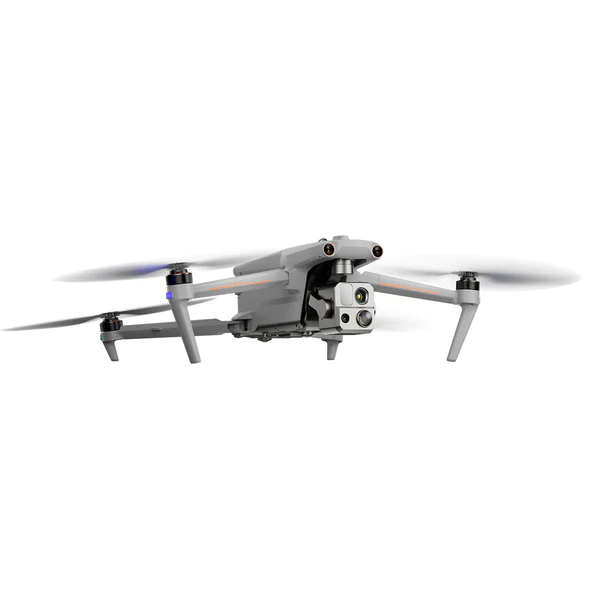

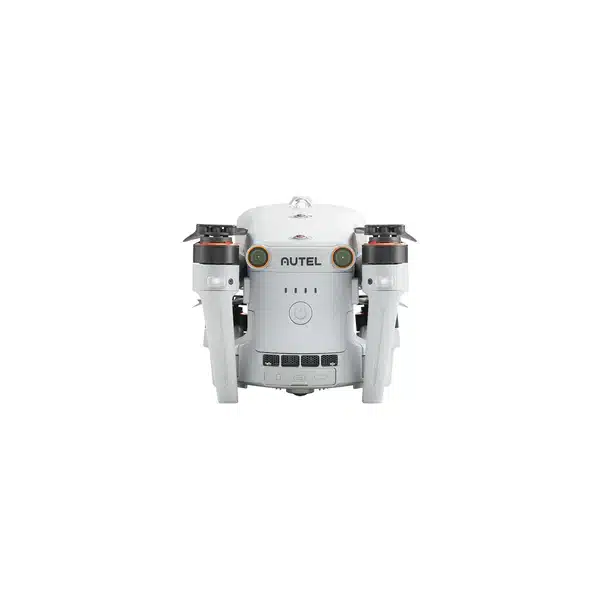

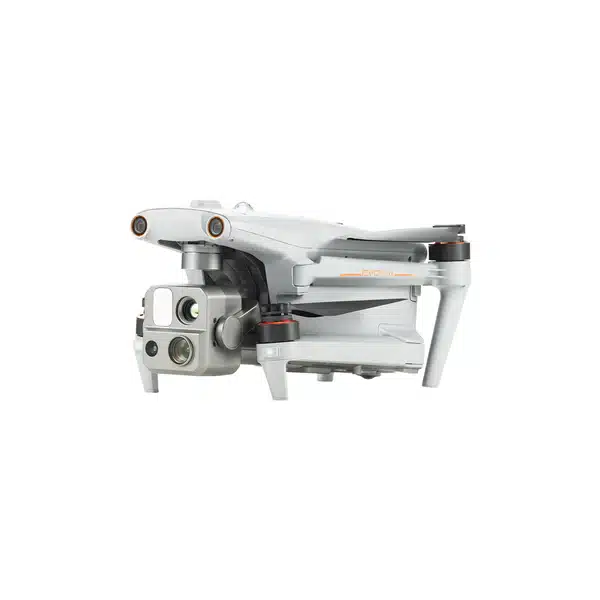

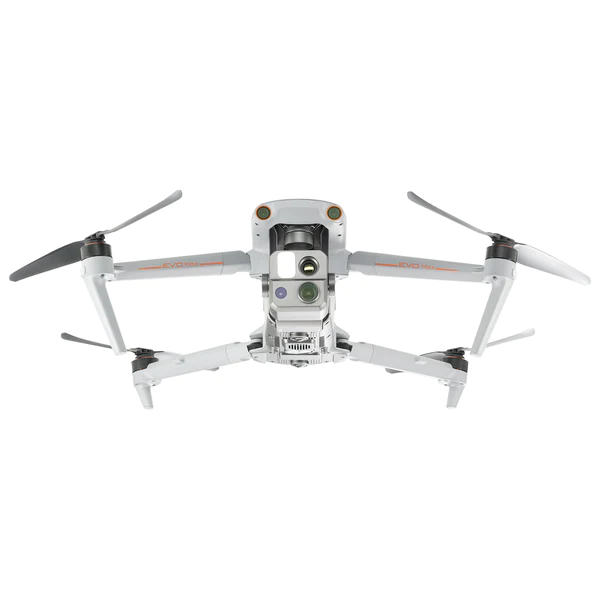

Autel Robotics EVO Max 4T

• Autonomous Path Finding

  Autel’s Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

•

• Navigation in GPS Denied Environment

  Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.

•

• Accurate Object Identification and Tracking

  Based on Autel’s AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

•

Anti Jam, Anti Interference

The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.

Weather Rating-IP43

The EVO Max 4T with IP43 Ingress Protection rating, it means Max 4T is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.

• 8070 mAh
  Capacity

• 14.88V
  Voltage

• LiPo 4S
  Battery Type

• 120wh
  Energy

• 520g
  Net Weight

• Support
  Hot Swap

Autel Autonomy

EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T’s onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

•
  Binocular Vision System

•
  Millimeter Wave Radar

•
• Strong Anti-Interference
  The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.

•
• Beyond-Line-of-Sight Applications
  With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.

•
• Full-Fleet Control
  Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

•
• Enhanced Range
  Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

•
• 3D Map Planning
  Plan, create, and execute 3D waypoint mission plan on a 3D map.

•
• Quick Mission*
  Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

•
• Mission Reproduction*
  With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.

•
• Spiral Mission*

  Supports helical flight search in a designated area for SAR.

•
• Vertical Scan*

  Perform vertical surveys for building facades, open pit walls, and towers.

•
• Corridor Mission*

  Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

•
• Polygon Mission

  Supports one-click automatic generation of polygon flight areas.

•
• Terrain Follow*

  Maintain relatively constant altitude from the ground for uneven or sloped terrain.

•
• Rectangular Mission

  Supports one-click automatic generation of a rectangular flight area.

• Multi-channel Projection Screen*
  Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
•

• AR Scene*
  Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone’s location and avoid airborne risks.
•

•
  Mobile SDK

• Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

•

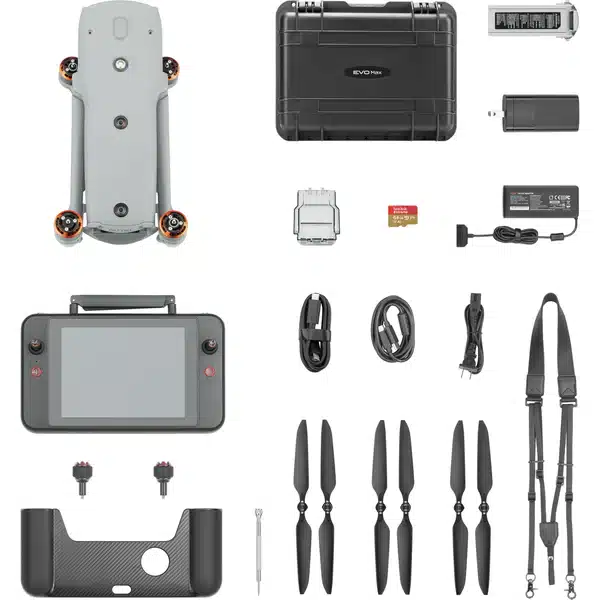

• Autel Smart Controller V3
  Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.

•

• Live Deck 2 (optional)
  Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision making without the need for LTE connection. The EVO Max 4T is compatible with Live Deck 2, which offers multiport streaming to monitors and Wi-Fi support for multiple local smart phones.

•

• EVO Nest (optional)
  EVO Nest is a base for automatic take off, landing, charging, and mission planning for the EVO series. The Nest is designed for all-weather operation and uses a single-piece protective drum with fewer moving parts to simplify maintenance.

•

• RTK Module (optional)
  Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
